KEY FEATURES OF THE MFD32
MFD32 is rich in functions that can be used, but do not have to be.
- Hardware: 3.2″ TFT screen, touchscreen, MicroSD, MicroUSB
- symmetrical display – therefore ideal for rotating it by 90°
- Views can be configured directly on the display or with our DSS – Display Setup software on the PC
- up to 64 widgets per display
- 64 sensors (Can Bus + internal)
- 10 views
- 4x analog inputs
- 2x speed input
- optional external shift light
- CAN bus switching
– supported values -
Many customers always ask: “Which values can I query from my control unit?” The answer: ” ALL “. Our MFD32 is compatible with ISO 11898-2 and SAE J2284.
The ECU manufacturers themselves determine which values are sent via the CAN bus interface. Documentation is important here – perhaps even in the form of a DBC file that can be imported directly. You can also access our extensive list of already implemented control devices. These can be found in the download area . A total of up to 50 sensors can be queried if the manufacturer supports this.
Data that is available in broadcast as well as OBD2 queries via Can Bus (11bit/29bit) are implemented. Special protocols such as TP2.0 from VW/Audi and UDS are also available.
If the desired control device is not listed, please contact us using the contact form
MFD32 – dimensions and attachment
With its dimensions of 95 x 69mm, the display is very compact. In addition, the three M4 threaded sockets on the back allow individual and secure attachment.
– DSS – Display Setup Software –
With our DSS – Display Setup Software, the display can be easily configured on the PC. The Can Bus protocol can be customized, you can import DBC files and design the displays with your widgets.
The log viewer downloads log files from the display. You can then look at these and select and scale values individually.
A built-in Can Bus Logger makes it possible to take a very close look at the protocol. This allows unknown can buses to be reverse-engineered.

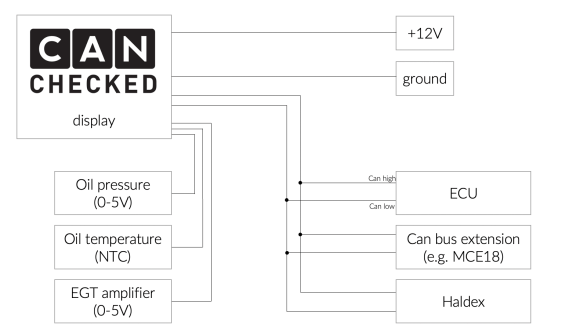

– Connection and extensions –
With our wide range of products, the display can be flexibly expanded
- CANchecked sensor for water/oil temperature
- CANchecked sensor for oil pressure/petrol pressure
- CANchecked Can Bus Extension: MCE18 – Can Bus Extension
- CANchecked Can Bus Hub: CBD08 – can bus distribution / can hub
– CAD dummy files –
If someone would like to integrate the MFD32 themselves and is good at CAD, we offer a STEP/STL file here that can be used as a dummy for construction:
