KEY FEATURES OF THE MFD32S
MFD32S or “Mini-Dash” is rich in functions that you can use, but don’t have to.
- Hardware: 3.2″ TFT screen, touchscreen, MicroSD, MicroUSB
- Integrated, freely programmable shift light
- Views can be completely configured directly via the display or on the PC with our DSS – Display Setup software
- up to 64 widgets per display
- 128 sensors (Can Bus + internal)
- 10 views
- 4x analog inputs
- 1x frequency input (e.g. for ethanol, turbocharger speed)
- CAN bus switching
– supported values -
Many customers always ask: “Which values can I request from my control unit”. The answer: “ ALL ”. Our MFD32S is compatible with ISO 11898-2 and SAE J2284.
The ECU manufacturers themselves determine which values are sent via the CAN bus interface. Documentation is important here – perhaps even in the form of a DBC file that can be imported directly. You can also access our extensive list of already implemented control devices. These can be found in the download area . A total of up to 64 sensors can be queried if the manufacturer supports this.
Data that is available in broadcast as well as OBD2 queries via Can Bus (11bit/29bit) are implemented. Special protocols such as TP2.0 from VW/Audi and UDS are also available.
If the desired control device is not listed, please contact us using the contact form
dimensions and attachment

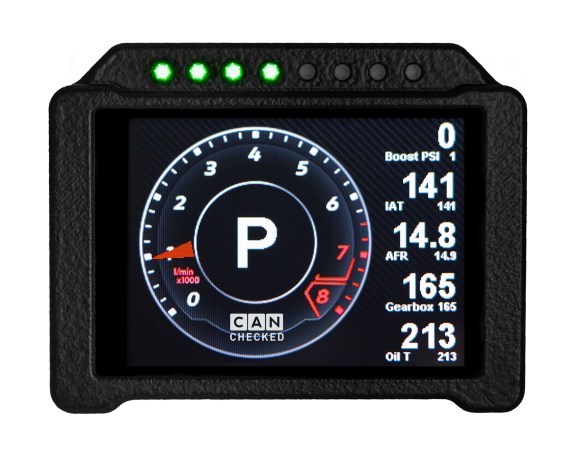

With its dimensions of 95 x 64mm, the display is very compact. In addition, the three M4 threaded sockets on the back allow individual and secure attachment.
MFD32S shift light setting
The individual setting options for the internal shift light leave little to be desired. There are 8 speed thresholds with individual colors and another threshold at which the shift light flashes. The brightness can also be adjusted to suit the circumstances.
– DSS – Display Setup Software –

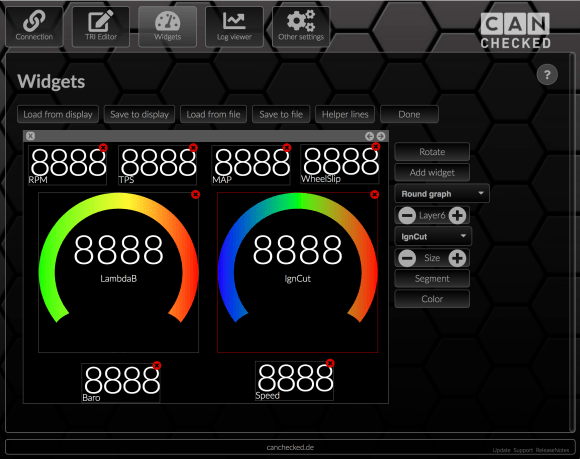

With our DSS – Display Setup Software, the MFD32S can be easily configured on the PC. The Can Bus protocol can be customized, you can import DBC files and design the displays with predefined widgets.
The log viewer downloads log files from the display. You can then look at them and select and scale values separately.
A built-in Can Bus Logger makes it possible to take a very close look at the protocol. This allows unknown can buses to be reverse-engineered.
– Connection and extensions –
With our wide product range, the display can be expanded flexibly
- CANchecked sensor for water/oil temperature
- CANchecked sensor for oil pressure/petrol pressure
- CANchecked Can Bus Extension: MCE18 – Can Bus Extension
- CANchecked Can Bus Hub: CBD08 – can bus distribution / can hub
– CAD dummy files –
If someone would like to integrate the MFD32S themselves and is fit in the area of CAD, we offer them a STEP/STL file here, which can be used as a dummy for the construction:
