CFE18 – Can Switch Board v2

CFE18 stands for “Can Bus Function Extension” or colloquially “Can Switch Board” – why is this module needed?

Can bus connections in the vehicle sometimes present our customers with great challenges. Especially in motor sports applications, when electronics have to be accommodated in the steering wheel and information from adjustment knobs (trimpots) or pushbuttons is then to be transmitted via Can Bus.

CANchecked now offers a small additional module which has 17 inputs: 8 for switches (low side) and 9 for analog inputs (0-5V signal). A voltage converter to ensure connection to a 12V vehicle electrical system is already integrated.

In the v2 (board v0.8) 3 switching outputs have also been added (low side max 0.5A)

Here you come to the v1 version (board 0.6): CFE18 – Can Switch Board V1

– The CFE18 hardware –

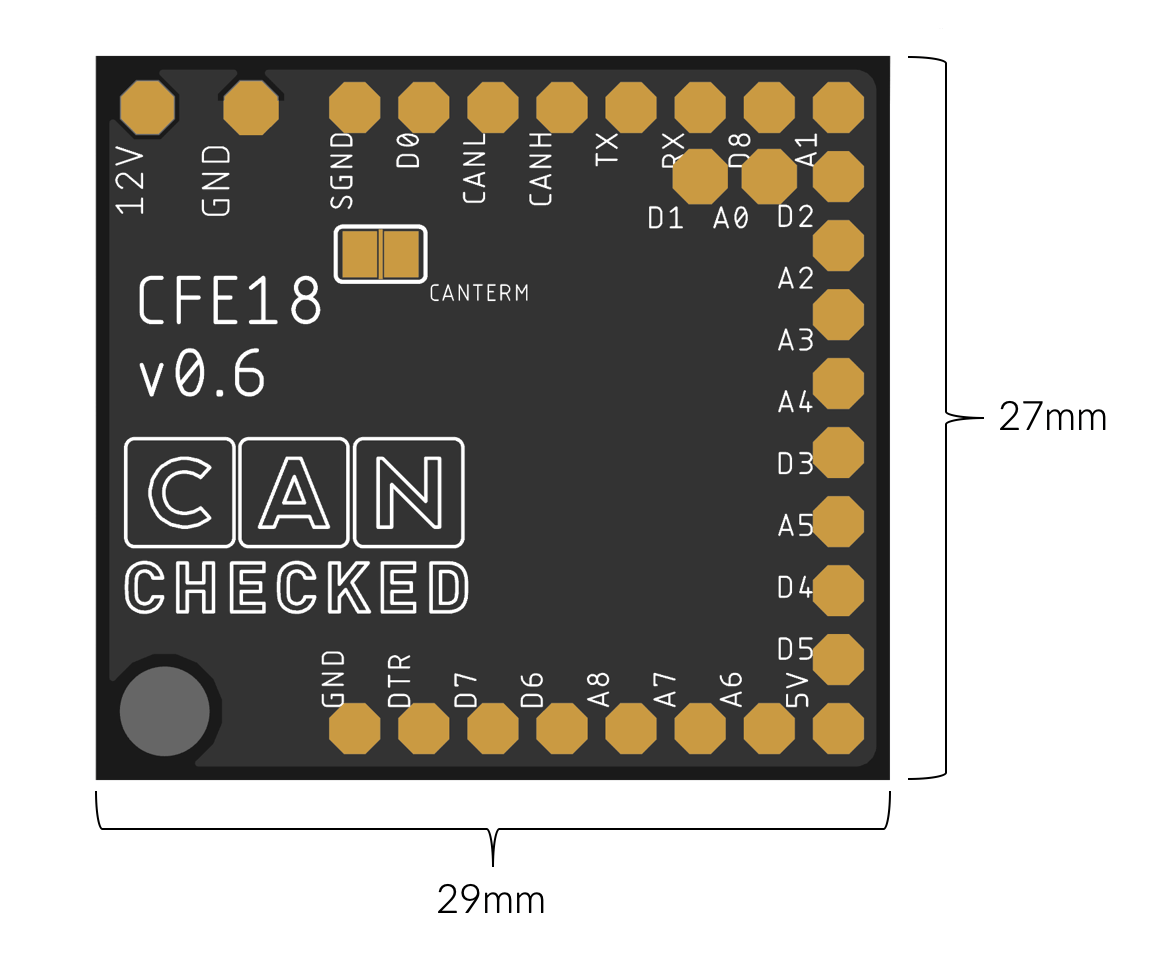

At just 29x27mm, the board is very compact and can fit anywhere. The pin spacing is 2.54mm – for the power supply, 3.81mm for safety reasons.

We have made a hole for attachment, which can be used as a screw connection.

CFE18 – Can Bus Termination

A solder jumper is attached to the circuit board.

If you close this, the Can Bus termination with 120 ohms is active. By default the solder jumper is OPEN .

– Connections –

12V / GND (top)	Power supply 6-22V (protected against polarity reversal)
A0-A8	9 analogue inputs (0-5V)
D0-D8*	9 digital inputs (maximum 5V) (internal pullup 20-50K) *D8 omitted with v0.8
5V/SGND	Power supply for analog sensors or sensor ground
CANL/CANH	Can Bus connection (Can Low, Can High) CAN 2.0 A/B – 125, 250, 500, 1000 kbps
AUX1-3*	Low side outputs 0.5A maximum – *from board v0.8
RX/TX/DTR/GND	optional: for any updates (additional hardware required)

– Motorsport steering wheel –

One application would be a motorsport steering wheel. In the picture you can see the approximate size, with the steering wheel hub being 50mm in diameter. With just 4 connections via a spiral cable, a wide range of inputs can be transmitted via Can Bus.

Thanks to PT Motorsport Electronics for the excellent example image of how our Can Switch Board can be integrated.

– connection options –

Switches and trimpots (adjustment knobs) can be connected to the CFE18.

But sensors such as oil pressure, fuel pressure, boost pressure, exhaust back pressure and integration into a separate housing would also be conceivable.

– CFE18 connection / Default Can Bus Stream –

The input data is queried and transmitted every 50ms (100Hz – changeable from 1Hz to approx. 300Hz – depending on smoothing ). The data is transmitted as “unsigned big endian”.

As soon as 12V and ground are connected, the green status LED on the front lights up and the Can Bus data is transmitted.

Can Bus ID: 0x700 ( Base Data CAN ID – changeable)

byte	0	1	2	3	4	5	6	7
Base ID	AIN0 0-1023		AIN1 0-1023		AIN2 0-1023		AIN3 0-1023
Base ID +1	AIN4 0-1023		AIN5 0-1023		AIN6 0-1023		AIN7 0-1023
Base ID +2	AIN8 0-1023		bit masked DIN0-7	bit masked DOUT1-3			internalTemp	version

– Digital outputs –

*From hardware v0.8

The CFE18 has three digital outputs from hardware 0.8. These can be loaded up to a maximum of 500mA and switch to ground (LOW SIDE).

To do this, you send a Can Bus frame every 100ms (CAN Id is configurable here – if there is a 500ms pause between the frames, the timeout is activated and the outputs are deactivated): (
0=inactive, 1=active)

byte	0	1	2	3	4	5	6	7
CAN RX ID (default: 0x640)	AUX1 0/1	AUX2 0/1	AUX3 0/1	unused

The setting is made via Can Bus – see configuration options

– AIN smoothing –

*From software version 3

If the analog inputs fluctuate too much, they can be smoothed out using software. This can be configured separately for each analog input.

The analog inputs are evaluated each time a transmission is sent (default: 20Hz).

Attitude	smoothing
0	no smoothing
1	2
2	4
3	8th
4	16
5	32
6	64

For example, if a smoothing factor of 4 is set, the average of the last 16 measurements is taken. As a result, the value becomes calmer (smoother), but also reacts with a delay to fluctuations. You have to find a healthy middle ground here.

The setting is made via Can Bus – see ” Configuration options “

– Configuration options –

The following values can be adjusted via Can Bus:

Data CAN ID:	with which Can Id the data is sent	default: 0x700
Config CAN ID:	with which CAN ID the board can be configured – RESTART required	default: 0x70A
Frequency:	with which the data is sent via the Can Bus in milliseconds	Default: 10ms = 100Hz
Can Bus Speed:	1=125kbps, 2=250kbps,3=500kbps,4=1Mbit – RESTART required	Default: 3 = 500kbps
Mode:	0=default, 1=EMUv3, 2=Haltech IO12B, 3=Haltech IO12A+B, 4=Motec	Default: 0
*Smoothing:	smoothing of the analog inputs, configurable for each input (0-6)	Default: 1

*from software version 3

Byte 0+1 are always 0x0C and 0x0A
Byte 2 feature starting with 0x0A

Features:
can id: 0x0A (high byte) + 0x0B (low byte)
config can id: 0x0C (high byte) + 0x0D (low byte)
frequency: 0x0E
can bus speed: 0x0F
mode: 0x10
can id RX: 0x12 (high byte ) + 0x13 (low byte) from CFE18 v0.8

Example 1: change data can id to 0x600

can id	byte 0	bytes 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7
0x70A	0x0C	0x0A	0x0A	0x06	unused
0x70A	0x0C	0x0A	0x0B	0x00	unused

Example 2: change frequency to 50Hz (20ms = 0x14 in hex)

can id	byte 0	bytes 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7
0x70A	0x0C	0x0A	0x0E	0x14	unused

Example 3: change can bus speed to 1Mbit

can id	byte 0	bytes 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7
0x70A	0x0C	0x0A	0x0F	0x04	unused

Example 4: change mode to EMUv3

can id	byte 0	bytes 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7
0x70A	0x0C	0x0A	0x10	0x01	unused

Example 5: change smoothing on AIN1 to 4 (=16)

can id	byte 0	bytes 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7
0x70A	0x0C	0x0A	0x14	0x04	unused

(0x14 = AIN1, 0x15 = AIN2, 0x16 = AIN3, 0x17 = AIN4, 0x18 = AIN5, 0x19 = AIN6, 0x1A = AIN7, 0x2B=AIN8)

– Control unit / ECU configuration –

The analog inputs provide 10-bit resolution and therefore values from 0 to 1023. The value must be converted in the control unit. All values are “unsigned big endian”

Examples:
5V voltage AIN0
0x700 Byte0+1
Multiplier: 5; divisor: 1023; Offset: 0

or multiplier: 0.004887585533

Exhaust gas temperature (type k) AIN7:
0x702 Byte6+7
Multiplier: 1250; divisor: 1023; Offset: 0

or multiplier: 1.2218963832

Either the individual bytes are used for the digital inputs. E.g. DIN6: 0x702 Byte 6 or the bitmask at 0x702 Byte2
