Here we present our display for the Cupra Formentor and Seat Leon or Cupra Leon
Access to all data from the engine control unit. So ALL. The sensors are queried directly via Can Bus and are displayed on our proven MFD28 . The Cupra Formentor display comes with a vehicle-specific panel and fits into the interior like an original part. The ventilation remains intact through the slots.
The sensors are queried by the Can Bus using the manufacturer-specific protocol. We have optimized the protocol to achieve maximum query speed.
Key features:
- integrates perfectly into the vehicle interior
- Up to 128 sensors can be queried
- 10 individually configurable views with our DSS – Display Setup Software
- Ready-made views for a quick start with our display
- Simply plug and play using our cable set – plug it in and you’re done
- 4 additional analogue inputs for exhaust gas temperature, oil pressure and more
- Ethanol sensor connection directly to the display
- best readability – optionally enclosed anti-reflection film
- Querying the sensors like manufacturer diagnostic tools
performance meter
Measure your acceleration times in our performance widget – 0-100, 100-200, 0-200
Data logging
Log all data onto the internal SD card. Regardless of whether “on-demand” (start with a tap of a finger) or permanently. All data of your last turn is saved.
Preset alarms
Ready-made warnings can be easily activated and customized. For example, I get a big warning message when the exhaust gas temperature is over 900 degrees.
4 analog additional inputs
Additional temperature and/or pressure sensors can be connected for further monitoring options. e.g. exhaust gas temperature or exhaust back pressure. An ethanol sensor can be connected to one of the digital inputs.
Read/delete errors
Read out errors from the engine control unit in plain text and also delete them
individual design
No matter whether the individual home screen or the selection from a variety of different widgets. Make the display yours!

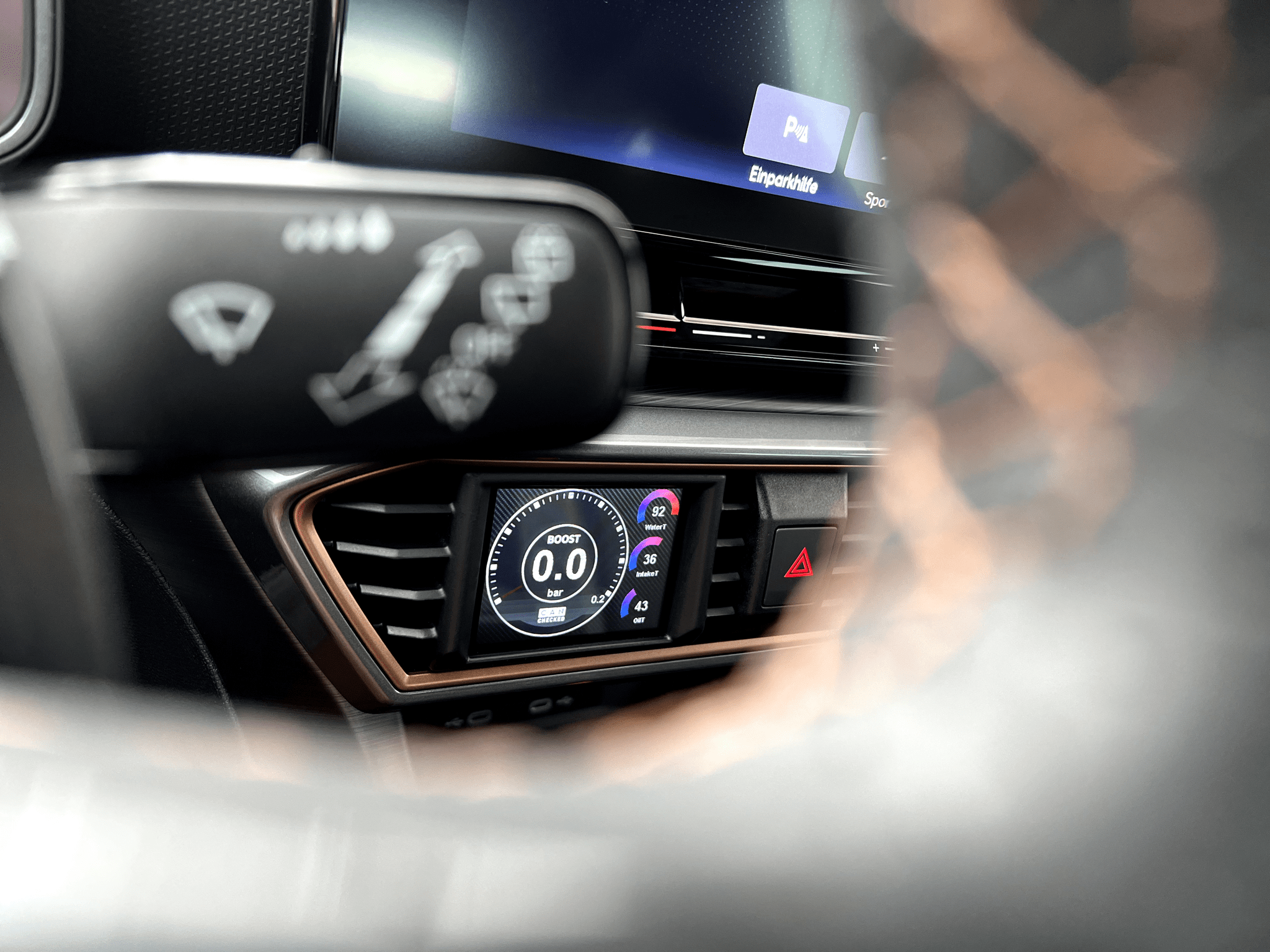

Seamless vehicle integration of the display for Cupra Formentor and Seat Leon
Standard views
Access to all data from the engine control unit
By default, we deliver a ready-made TRI file to your display. All sensors that are queried are defined here.
Temperatures:
- Engine water temperature, intake temperature, exhaust gas temperature, transmission temperature
pressures:
- Boost pressure, ambient pressure, oil pressure
Lambda/mixture
- Lambda value target/actual, short-term lambda adjustment, long-term lambda adjustment, MAF, engine load, torque
Driver dynamics:
- Brake pressure, vehicle speed, throttle angle/accelerator pedal position
Miscellaneous
- Speed, total ignition angle, gear, battery voltage, ignition angle reduction per cylinder
Analog inputs
- further sensors can be added here: oil temperature, fuel pressure, oil pressure, exhaust gas temperature, etc. but also an ethanol sensor (flex fuel)
If values are missing, they can easily be added.
ATTENTION: not every engine offers all values!
For which engines and models is the Cupra Formentor display
The display cover fits all Cupra Formentor and Seat Leon 4 left-hand drive vehicles (LHD). A version for RHD (right-hand drive) is in the works.
Buy your new display for your Cupra Formentor or Seat Leon
The Cupra Formentor display as well as all of our other items can be purchased from one of our dealers.
installation instructions
You can find the illustrated installation instructions here:
