Your Golf MK7 is missing a data display? We have – the Golf MK7 display from CANchecked
Access to all data from the engine control unit. So ALL. The sensors are queried directly via Can Bus and are displayed on our proven MFD28 (BUT as 3.2″) . The Golf MK7 display comes with a vehicle-specific cover and fits into the interior like an original part. The ventilation remains through the slots remain intact.
The sensors are queried via UDS. We have optimized the protocol to achieve maximum query speed.
Key features:
- integrates perfectly into the vehicle interior
- Up to 50 sensors can be queried
- 10 individually configurable views with our DSS – Display Setup Software
- Ready-made views for a quick start with our display
- Simply plug and play using our cable set – plug it in and you’re done
- 4 additional analogue inputs for exhaust gas temperature, oil pressure and more
- Best readability – optional anti-reflective film included
- Querying the sensors like manufacturer diagnostic tools
- Connect an ethanol sensor (FlexFuel) directly to the display
performance meter
Measure your acceleration times in our performance widget – 0-100, 100-200, 0-200
Data logging
Log all data onto the internal SD card. Regardless of whether “on-demand” (start with a tap of a finger) or permanently. All data of your last turn is saved.
Preset alarms
Ready-made warnings can be easily activated and customized. For example, I get a big warning message when the exhaust gas temperature is over 900 degrees.
4 analog additional inputs
Additional temperature and/or pressure sensors can be connected for further monitoring options. e.g. exhaust gas temperature or exhaust back pressure. An ethanol sensor can be connected to one of the digital inputs.
Read/delete errors
Read out errors from the engine control unit in plain text and also delete them
individual design
It doesn’t matter whether it’s the individual start screen or the selection from a large number of different widgets. Make the display yours!

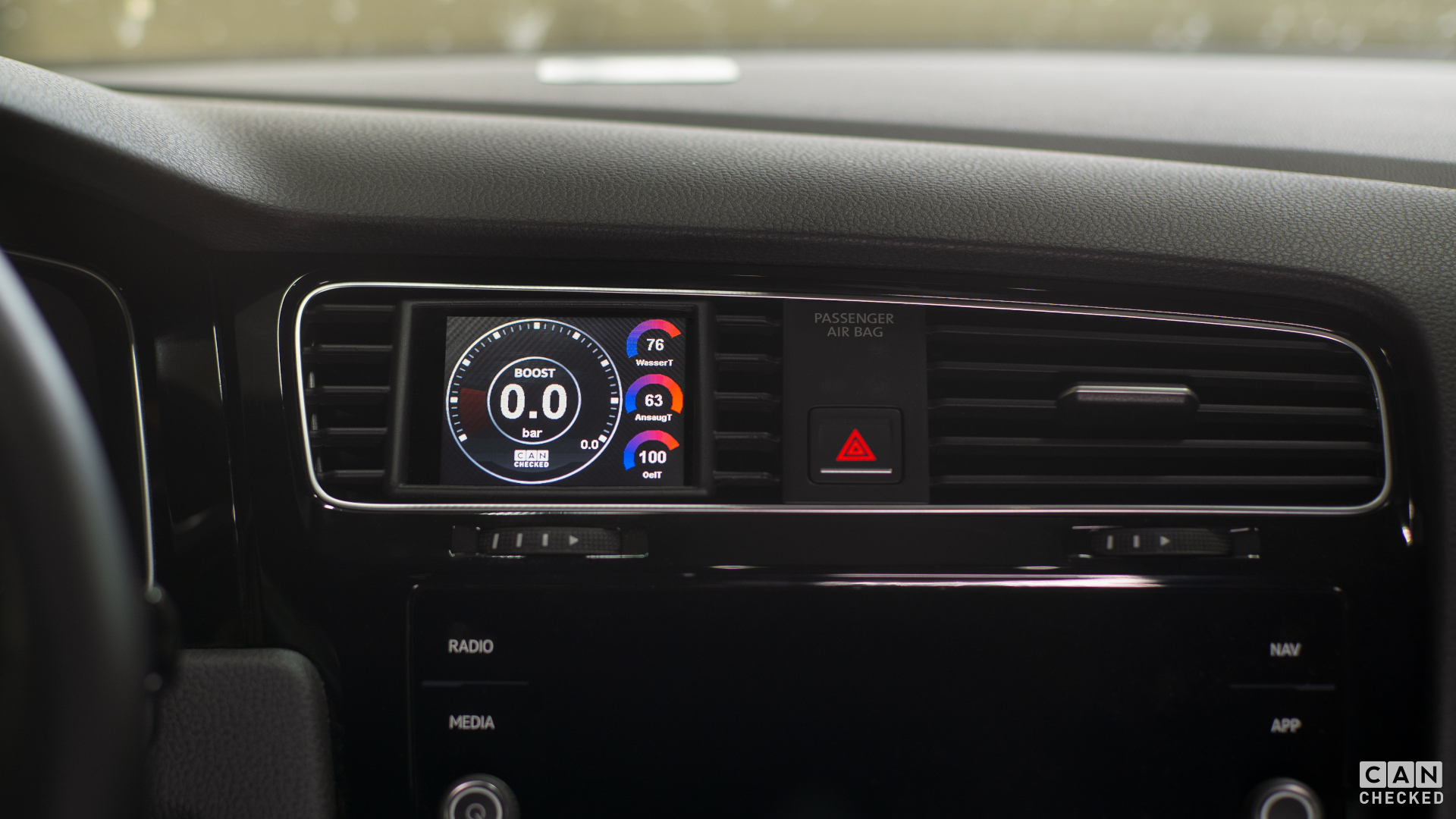

Seamless vehicle integration
Golf MK7 display – presentation video
Standard views
Access to all data from the engine control unit
As standard, we supply your display with a ready-made TRI file. All sensors that are queried are defined here.
Temperatures:
- Exhaust gas temperature, engine water temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature
pressures:
- Boost pressure, ambient pressure, fuel pressure pre-feed pump
Lambda/mixture
- Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment
Miscellaneous
- Engine speed, air mass (g/s), vehicle speed, throttle valve angle, total ignition angle, ignition angle retardation per cylinder, N75 activation in %, terminal 30 voltage, oil level, torque, gear
If values are missing, they can be added easily.
For which engines and models is the display
The display cover fits all Golf MK7 left-hand drive vehicles. A version for RHD (right-hand drive) is also available.
The GTI models for facelift and pre-facelift as well as GTD have already been tested. But also Golf R, GTE, eGolf, 1.4TSI, etc
If your engine is not listed, please contact us.
Buy your new Golf MK7 display
The Golf MK7 display as well as all of our other items can be purchased from one of our dealers.
