Here we present our VW Scirocco MK3 display.
Access to all data from the engine control unit. So ALL. The sensors are queried directly via Can Bus and are displayed on our proven MFD28. The VW Scirocco MK3 display comes with a vehicle-specific panel and fits into the interior like an original part. The ventilation remains intact through the slots.
The sensors are queried via KWP2000. We have optimized the protocol to achieve maximum query speed.
Key features:
- integrates perfectly into the vehicle interior
- Up to 128 sensors can be queried
- 10 individually configurable views with our DSS – Display Setup Software
- ready-made views for a quick start with our display
- simply plug and play via our cable set – plug in, done
- 4 additional analogue inputs for exhaust gas temperature, oil pressure and more
- Best readability – optional anti-reflective film included
- Querying the sensors like manufacturer diagnostic tools
performance meters
Measure your acceleration times in our performance widget – 0-100, 100-200, 0-200
Data logging
Log all data to the internal SD card. Regardless of whether “on-demand” (start with a tap of a finger) or permanently. All data of your last turn is saved.
Preset alarms
Ready-made warnings can be easily activated and customized. For example, I get a big warning message when the exhaust gas temperature is over 900 degrees.
4 additional analog inputs
Additional temperature and/or pressure sensors can be connected for further monitoring options. eg exhaust gas temperature or exhaust gas back pressure. An ethanol sensor can be connected to one of the digital inputs.
Read/delete errors
Read out errors from the engine control unit in plain text and also delete them
individual design
It doesn’t matter whether it’s the individual start screen or the selection from a large number of different widgets. Make the display your ad !

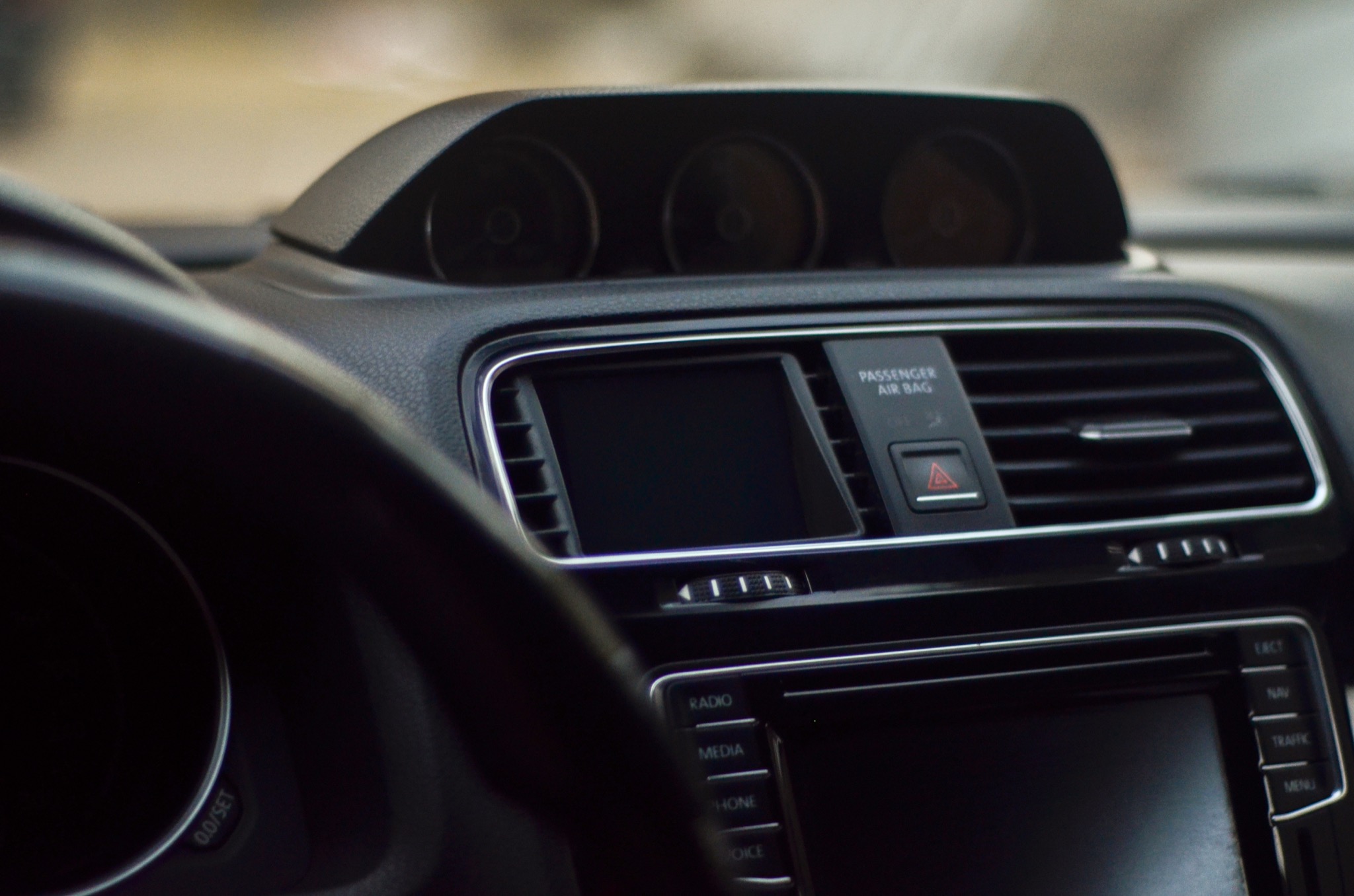

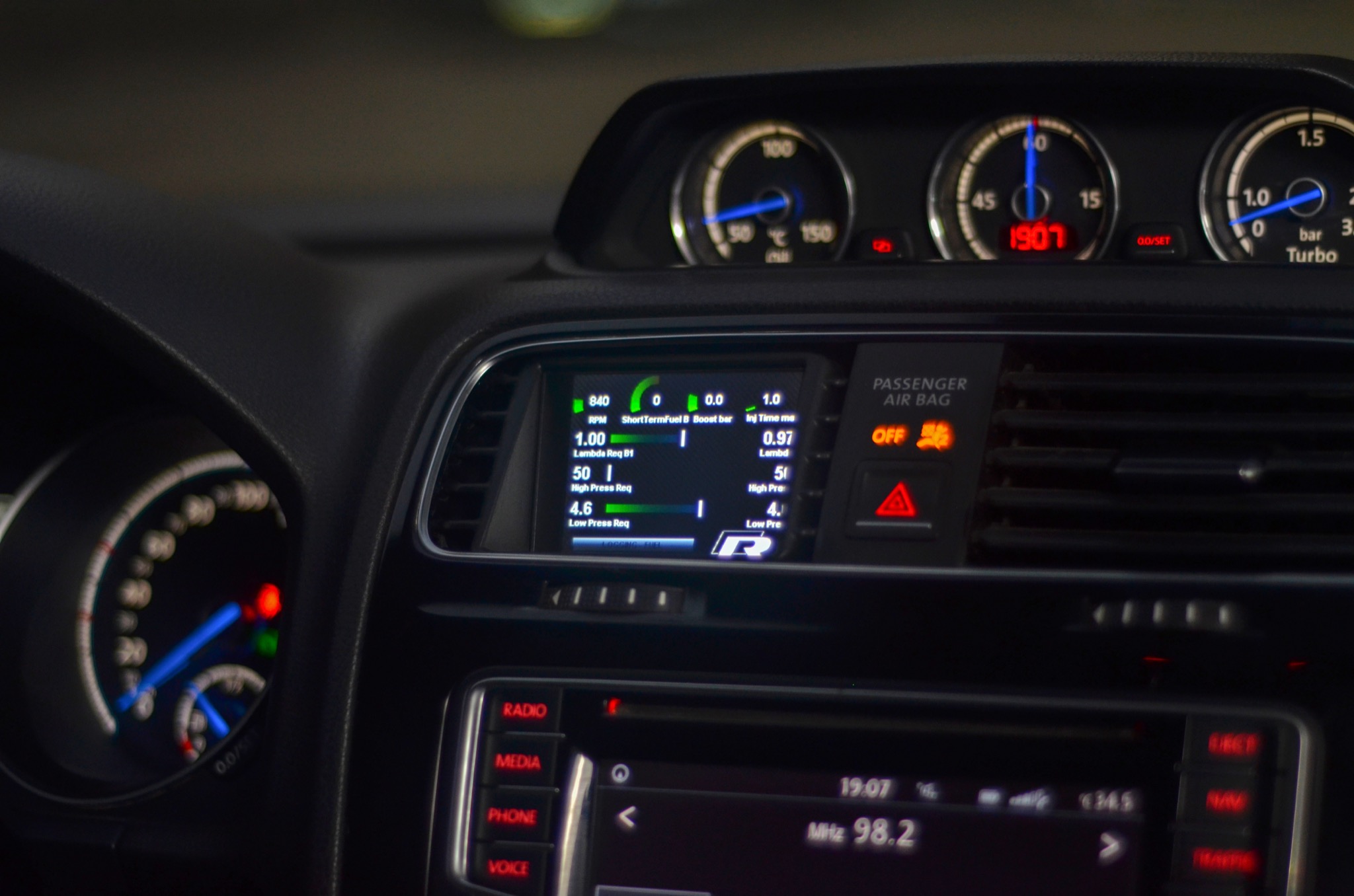

Seamless vehicle integration of the VW Scirocco MK3 display
Standard views
Access to all data from the engine control unit
By default, we deliver a ready-made TRI file to your display. All sensors that are queried are defined here.
Temperatures:
- exhaust gas temperature, engine water temperature, oil temperature, intake temperature, outside temperature, fuel temperature,
pressures:
- Boost pressure, ambient pressure, fuel pressure pre-feed pump
Lambda/mixture
- Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment
Miscellaneous
- Engine speed, air mass (g/s), vehicle speed, throttle valve angle, total ignition angle, ignition angle retardation per cylinder, N75 activation in %, terminal 30 voltage, oil level, torque, gear
If values are missing, they can easily be added.
ATTENTION: not every engine offers all values!
For which engines and models is the Scirocco MK3 display
The display cover fits all VW Scirocco MK3 left-hand drive vehicles – separate versions for facelift and pre-facelift. A version for RHD (right hand drive) is also available.
Buy your new VW Scirocco MK3 display
The VW Scirocco MK3 display as well as all of our other items can be purchased from one of our dealers.
