Display for BMW E81 E82 E87 E88 incl. 1 series M
Our CANchecked display for BMW E81, E82, E87, E88 (i.e. for the 1 series including 1 series M) is now available. The display is already in Generation 2 (Gen2), which contains many optical improvements and also new features.
performance meters
Measure your acceleration times in our performance widget – 0-100, 100-200, 0-200
Data logging
Log all data onto the internal SD card. Regardless of whether “on-demand” (start with a tap of a finger) or permanently. All data of your last turn is saved.
Preset alarms
Ready-made warnings can be easily activated and customized. For example, I get a big warning message when the exhaust gas temperature is over 900 degrees.
4 analog additional inputs
Additional temperature and/or pressure sensors can be connected for further monitoring options. e.g. exhaust gas temperature or exhaust back pressure. An ethanol sensor can be connected to one of the digital inputs.
Read/delete errors
Read out errors from the engine control unit in plain text and also delete them
individual design
It doesn’t matter whether it’s the individual start screen or the selection from a large number of different widgets. Make the display your ad !
Your BMW is missing a data display! We have – the CANchecked display for BMW E81 E82 E87 E88 incl. 1 Series M
Of course, it also fits the 1 Series M Coupe.

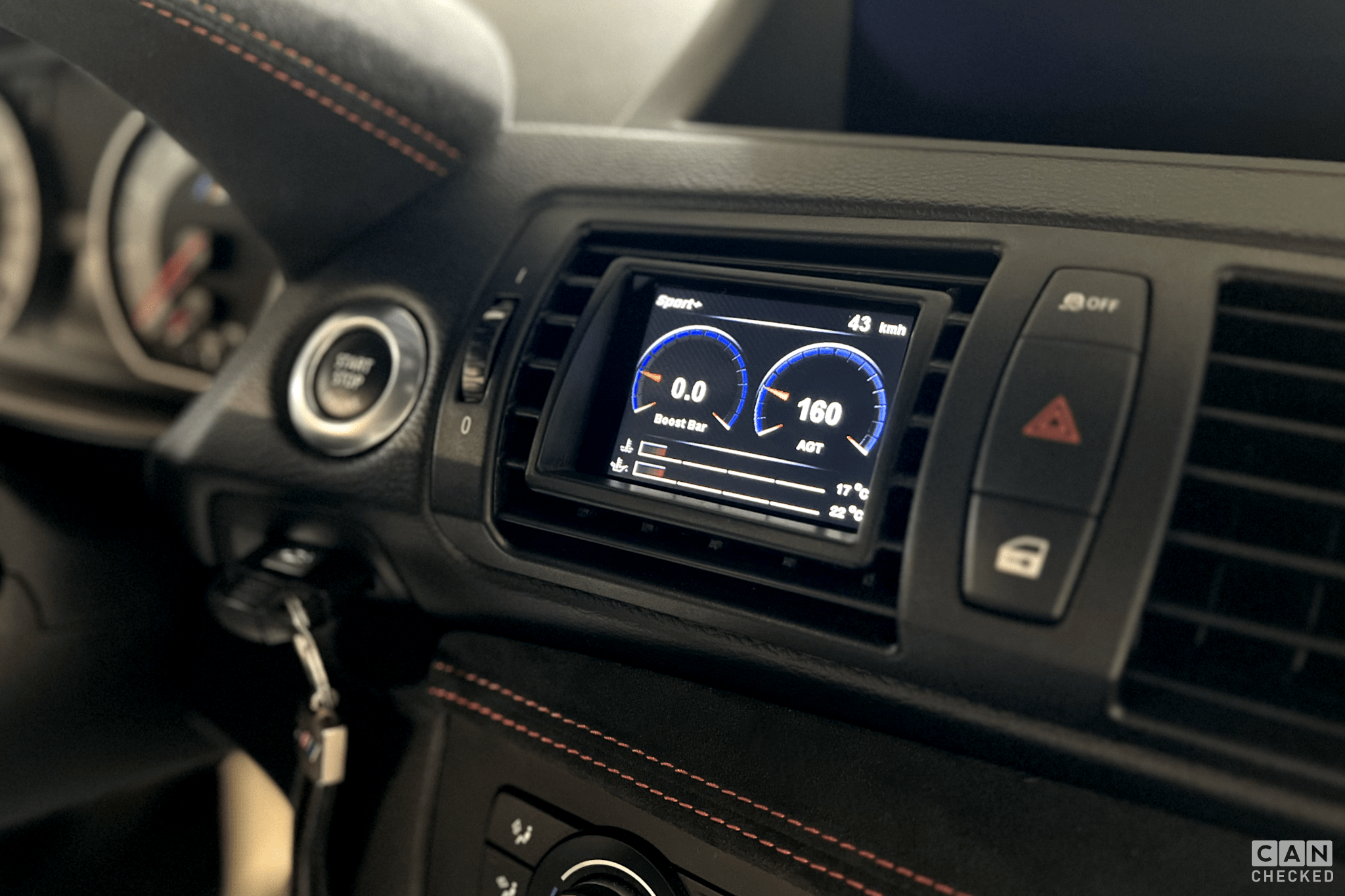

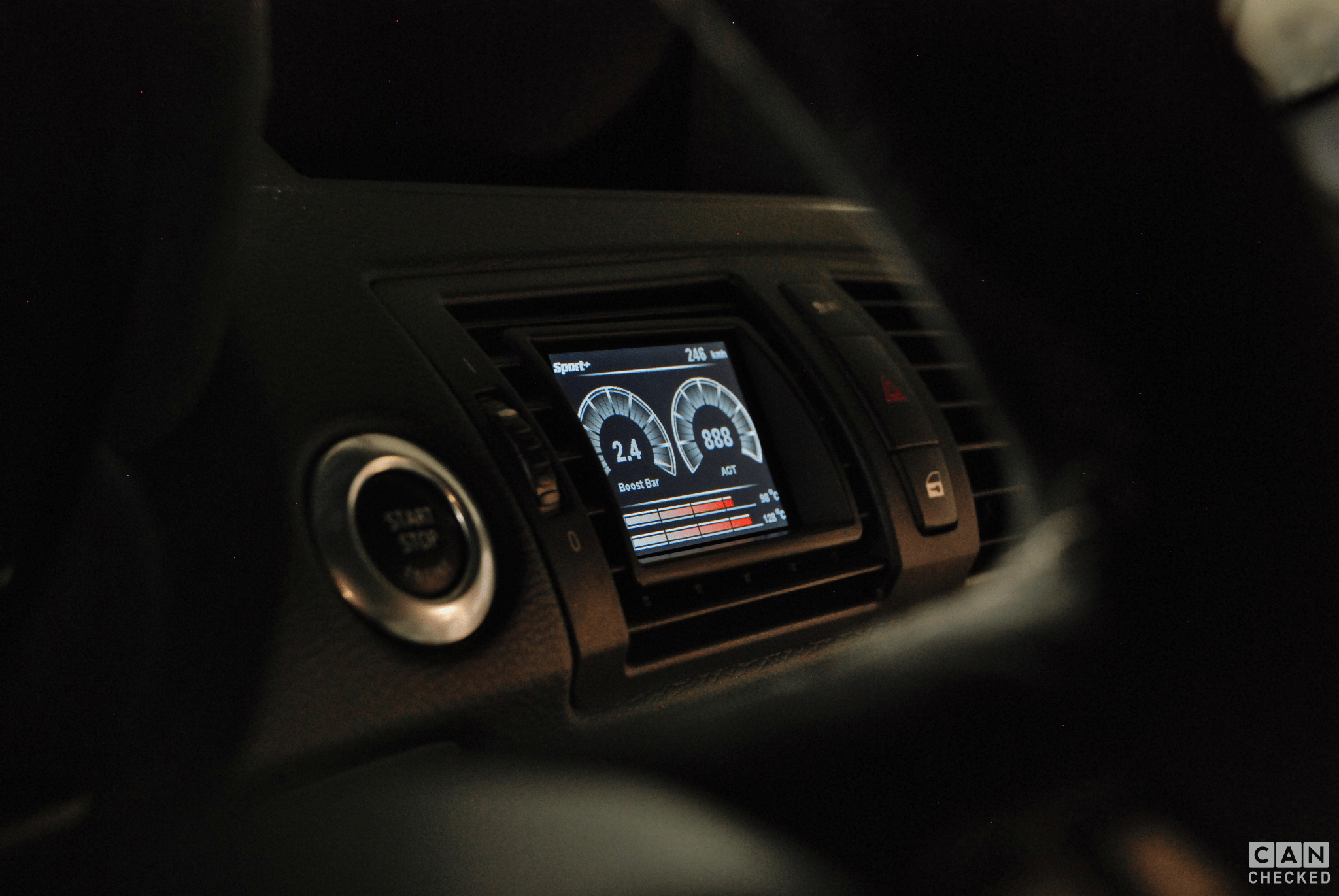

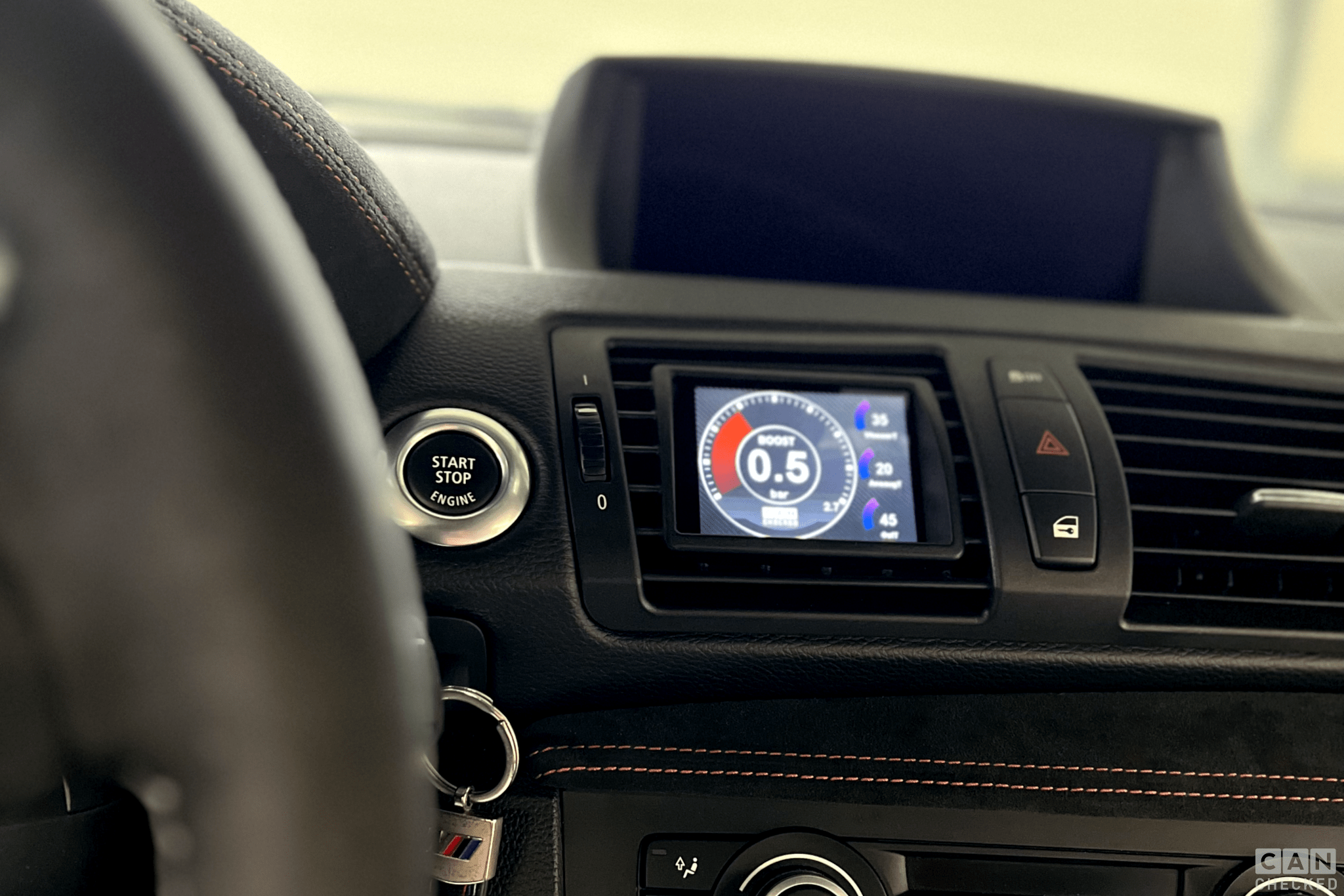

Access to all data from the engine. The sensors are queried directly via Can Bus and are displayed on our proven MFD28. The display for the BMW E-Series comes with a vehicle-specific cover and fits into the interior like an original part. This means that the ventilation through the slots remains intact.
Our display emulates a manufacturer tester so all detailed values are available. We have optimized the protocol to achieve maximum query speed.
Key features:
- integrates perfectly into the vehicle interior
- Up to 128 sensors can be queried
- 10 individually configurable views with our DSS – Display Setup Software
- Ready-made views for a quick start with our display
- simply plug and play via our cable set – plug in, done
- 4 additional analogue inputs for exhaust gas temperature, oil pressure and more
- Best readability – optional anti-reflective film included
- Querying the sensors like manufacturer diagnostic tools
Seamless vehicle integration
Switch pages with the cruise control button
In order to make driving safer, we have integrated the cruise control switch here with the company Lightweight-Performance .
If the cruise control is not active, you can use the up/down button to scroll through the views on the display. This has the following advantages
- no “searching” of the display while concentrating on the road
- Switching also with gloves (on track days)
- Quickly and safely check overview pages and then return to the main view
Here is an example video in the BMW F series. On the E-Series, the cruise control lever is located separately under the turn signal lever.
Driver Dynamics in the display for BMW E81 E82 E87 E88 including 1 Series M
We have developed a special view for all track riders who want to further improve their riding style and get a second or two faster
- G forces (lateral and longitudinal acceleration)
- Vehicle speed
- steering angle
- accelerator position
- Brake pressure
This sensor technology gives the driver the opportunity to aim for even higher speeds in curves and to hit the braking point even later.
Together with the data log in the internal memory, which can be downloaded from the display after a track day, this offers a great opportunity to synchronize the data with a video.
Example from the 3 Series E
Access to all data from the engine control unit
As standard, we supply your display with a ready-made TRI file. All sensors that are queried are defined here.
Temperatures:
- Engine water temperature, oil temperature, intake temperature, exhaust gas temperature, transmission temperature
Pressures:
- Boost pressure, target boost pressure, high pressure pump fuel pressure, exhaust back pressure, low pressure, brake pressure, oil pressure
Lambda/mixture
- Lambda value target/actual, injection correction, short-term lambda adjustment, total ignition angle
Miscellaneous
- Engine speed, air mass (g/s), vehicle speed, throttle valve angle, battery voltage, gear, accelerator pedal position, longitudinal and lateral acceleration, steering angle, yaw angle, torque, power, boost pressure control valve activation,
If values are missing, they can be added easily. It always depends on the motor as to whether it supports the values; sometimes not all sensors are available.
!! Not all values are available for all engines!!
For which engines and models is the display for BMW E81 E82 E87 E88 incl. 1 Series M
The display bezel fits the following BMW 1 Series E series:
- N54
- N55
- N43
- other engines in preparation and on request
the respective version for RHD (right-hand drive) is also available. The data may vary between the different engines.
If you have any questions, please contact us – please always tell us the exact vehicle type and engine.
Reading and deleting errors
With a “Swipe” down you get access to the “DTC” (Diagnostic Trouble Codes = error memory). The display reads the error memory from the engine. Optionally, you can also delete them directly on the display.
Errors for the engine are displayed in plain text so that you can decide for yourself whether you can continue driving.
installation instructions
You can find illustrated installation instructions here:
– German: Installation-Instruction-BMW-E9X
– English: Installation-Instructions-BMW-E9X
Buy your new CANchecked BMW E-Series display
The display for BMW E81 E82 E87 E88 incl. 1er M as well as all other items from us are available from one of our dealers.
